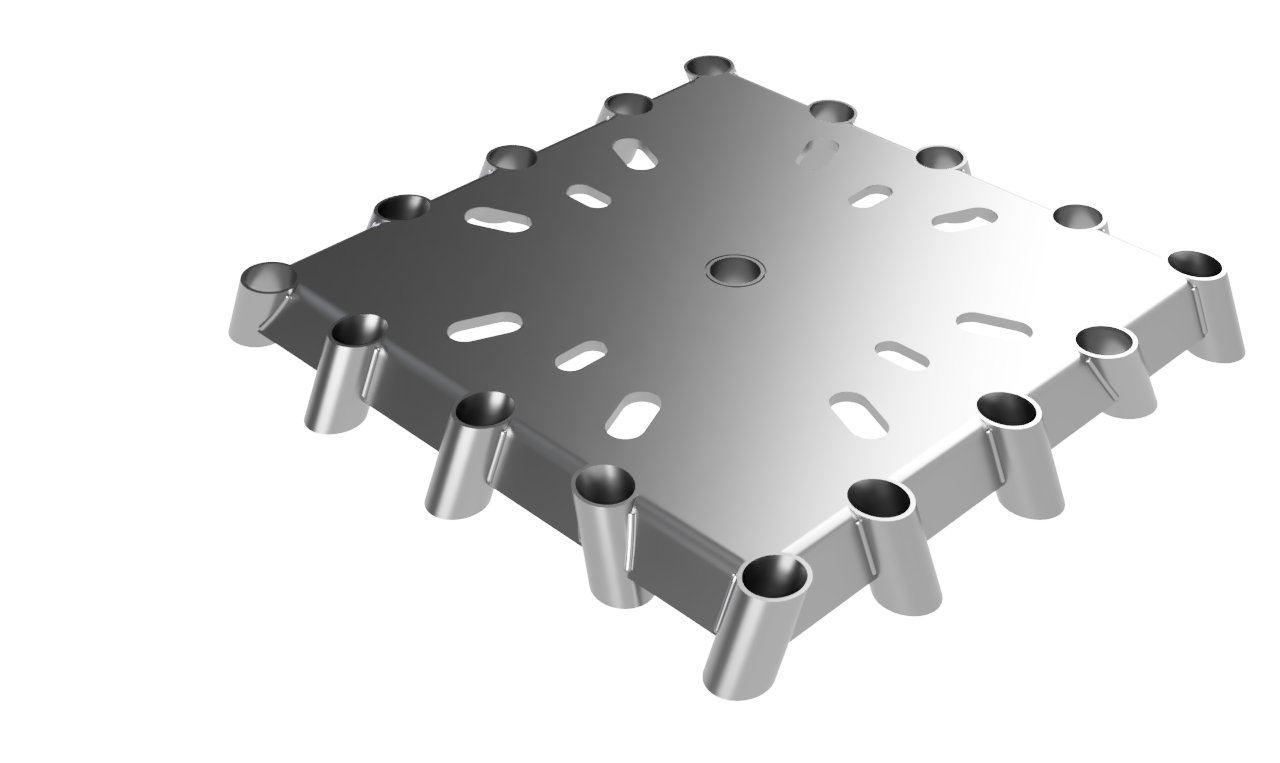

SUREFOOT PILE CAP S600 16P

Bolting Pattern: 350-400 PCD x 4 x 26mm holes, 432-500 PCD x 4 x 32mm holes

Micro Piles: 16 x 32NB (Nominal Bore) 42.4OD, Galvanised Pile Light, Medium, Heavy

Load Capacity: Up to 300kN

Average installation time: 40 minutes approx.

Our largest model is designed to take higher loads and is used mainly in the commercial and renewable energy sector. The recommended maximum capacity is 300kN. It has an average installation time of 40 minutes.

The S 600 – 16 pile model can be used on its own or in combination to negate higher bending moment loads.

Surefoot provides instant bearing capacity and can be built on once all micro piles have been installed
and the pile cap bedded down. This provides the opportunity to reach maximum cost and time efficiency within your construction program

The Surefoot steel footing system offers instant bearing capacity with no curing time and the ability to be installed, removed and reused in separate locations as required. Delivering a distinct advantage over the use of traditional foundations in the construction of both temporary and permanent bridges, it is suited for use in difficult to navigate areas. This revolutionary footing system has minimal impact on the surrounding flora and fauna and will not erode river banks.

Reducing the need for heavy equipment traditionally required for earthworks, the Surefoot system offers precision and efficiency and will enable both the construction and use of a bridge within the same day. With untapped potential within many industry’s including the military this innovative concrete free footing system will continue to revolutionise the way builders and the construction industry operate.
