SUREFOOT PILE CAP S400 12P

S400 12P

SUREFOOT CONCRETE FREE FOOTINGS

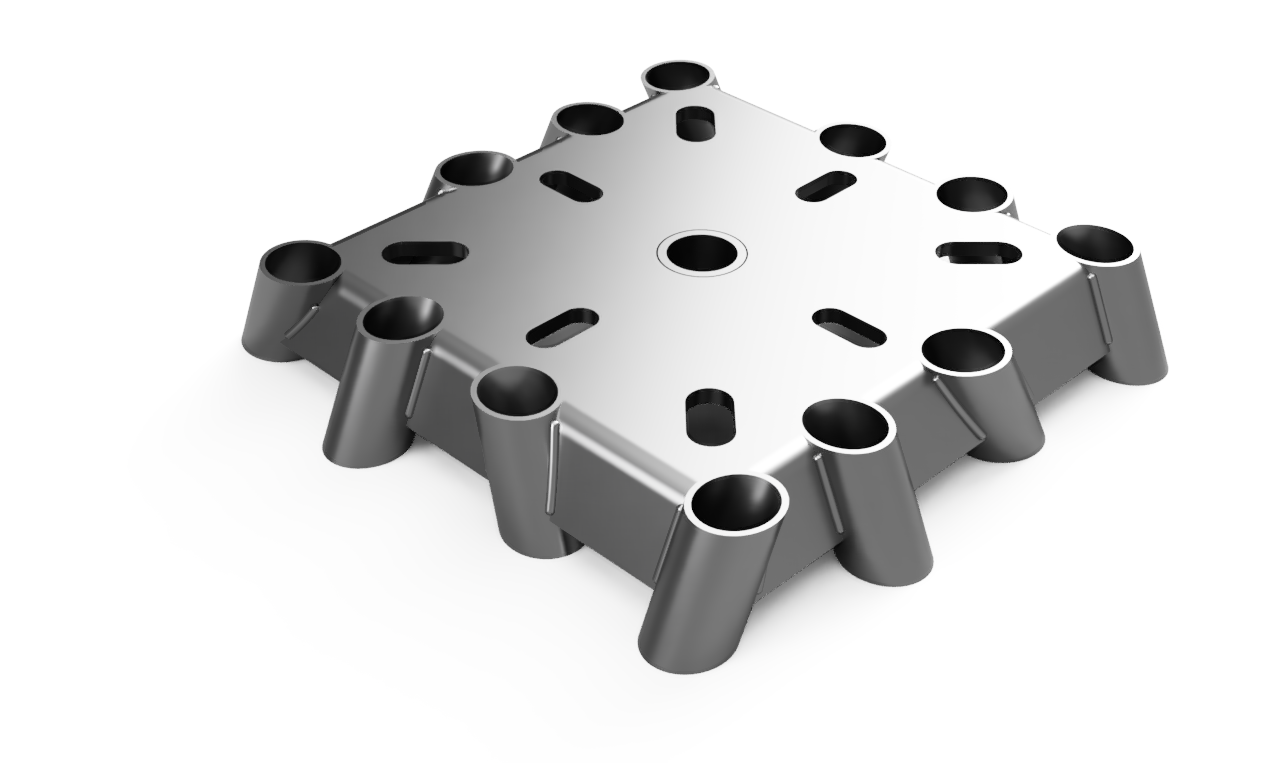

SUREFOOT PILE CAP S400 12P

Bolting Pattern: 198-250 PCD x 4 x 22mm holes, 300-350 PCD x 4 x 26mm holes

Micro Piles: 6 x 32NB (Nominal Bore) 42.4OD, Galvanized Pipe Light, Medium, Heavy

Load Capacity: Up to 200kN

Average installation time: 15 minutes approx.

Category:
construction 17 yb 14

READY TO WORK TOGETHER? BUILD A PROJECT WITH US.

CONTACT US NOW
Surefoot Pile Cap S400 12P

SUREFOOT CONCRETE FREE FOOTINGS

GENERAL INFO

Designed to take higher loads in the renewable energy, residential and commercial sector. The S400 – 12 pile model is also considered as our universal model as 8 ,10 or 12 micro piles could be specified by our engineering team to accommodate your requirements.

It can accommodate up to 200kN of gravity load and has an average installation time of 35 – 45 minutes. With untapped potential within many industries including the military, this innovative, reliable footing system will continue to revolutionise the way the construction industry operates

SUREFOOT CONCRETE FREE FOOTINGS

THE SOLAR INDUSTRY

The footing selection is a vital element in the installation of PV solar panel support structures. Built to withstand shear and environmental elements the Surefoot Footing system acts as a tension foundation negotiating uplift forces generated by winds and excessive movement, providing stability and flexibility without impacting the footings functionality.

Boasting an installation time of 15 minutes, the Pile Cap S400 has been crafted and designed to accommodate site specific foundation and soil types across a variety of geographical and climatic ranges particularly in remote areas where solar farms are commonly located. A multi-purpose foundation the Surefoot system is an innovative alternative in all construction applications where a concrete footing can be used.

IMG 8696
construction 17 yb 14

READY TO WORK TOGETHER? BUILD A PROJECT WITH US.

CONTACT US NOW
containercyclonetiedown 825x510 1

SUREFOOT CONCRETE FREE FOOTINGS

CONTAINER & CYCLONE TIEDOWNS

The ultimate uplift prevention system, the Surefoot state of the art steel footing is suitable for all construction work where a foundation is required. Supplying superior loading capacity and efficiency of install when compared to the more conventional concrete slab footing, the Surefoot system features a design capacity calculated on the working stress method and by deploying refined geotechnical data, your containers can be erected quickly.

Offering enhanced stability and minimal soil and substrate disruption, the Surefoot is the footing of choice for both container and cyclone tie downs. Both tested and certified in cyclonic prone areas, the Surefoot will ensure your building project is built and fastened to withstand uplift, shear and environmentally challenging conditions.
